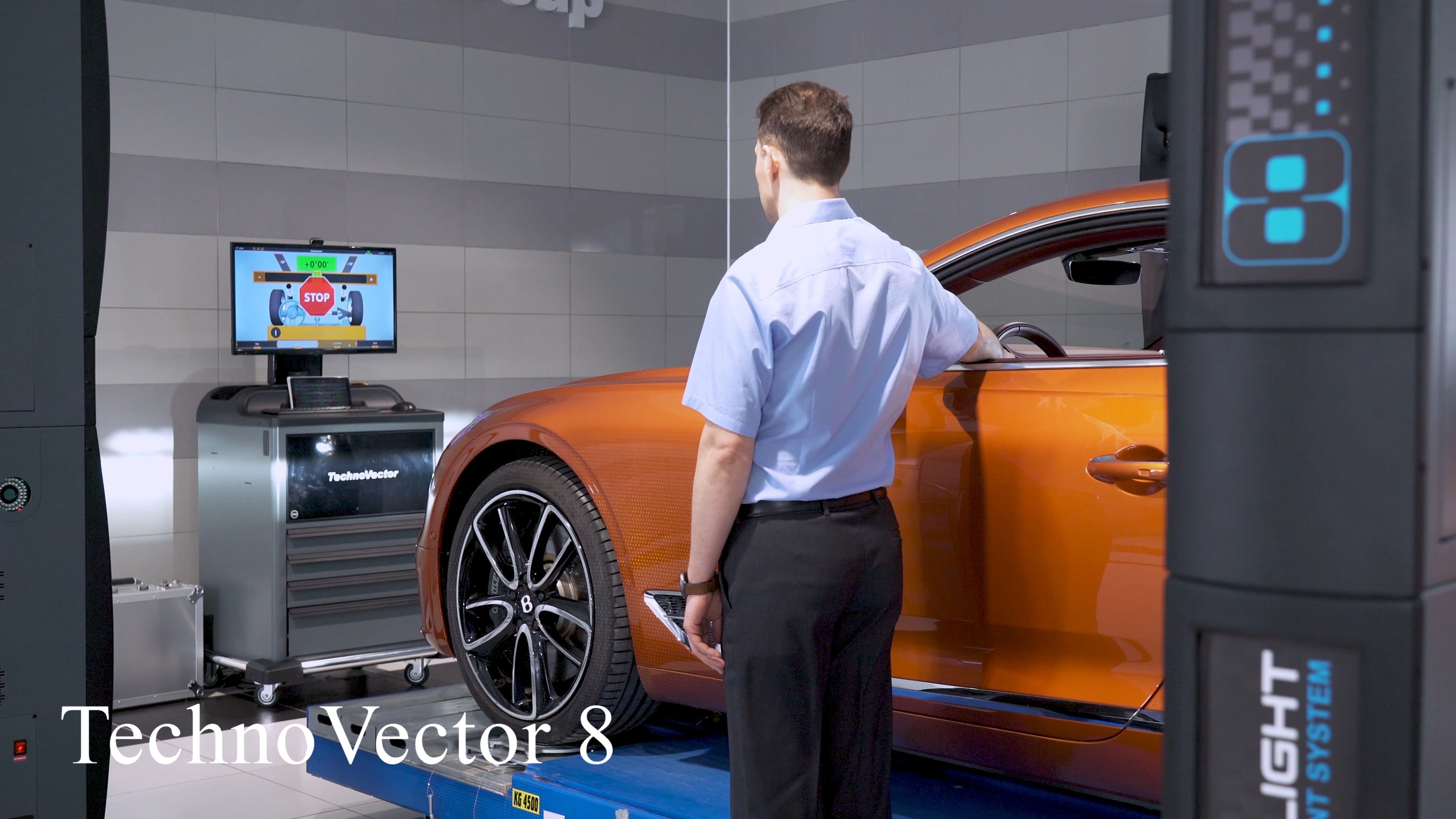

TechnoVector 8 contactless wheel aligner (8218)

TechnoVector 8 contactless wheel aligner guarantees the safety of wheel rims and provides the best operation speed: measurement of all the basic parameters is performed right after the car enters the measurement area. Advantages Contactless measurement Wheel adapter and target installation NOT required Measurements accomplished within seconds Extra space in front and at the back of the car NOT required Measurements on the floor allowed Automatic rotating posts for rear wheels control Powerful PC for high measurement speed Fits for shops 4.9 and more meters wide Maximum wheel diameter – 90cm Wheelbase from 2 to 3.9m (can be adapted individually to a client ) TechnoVector 8 SmartLight operation principle TechnoVector 8 aligners are based on a machine vision system and a structured light projection system. The software projects a pattern of points in front of it, determines the wheel position and, based on a pair of cameras (stereo-vision), calculates a precise position for each point in 3D space. The software then performs an analysis of the points, ignores those that are irrelevant or lead to erroneous results and determines each wheel’s position in 3D space. Camera units are interconnected using a 3D technology (a camera and a target) to allow for a unified coordinate system.
